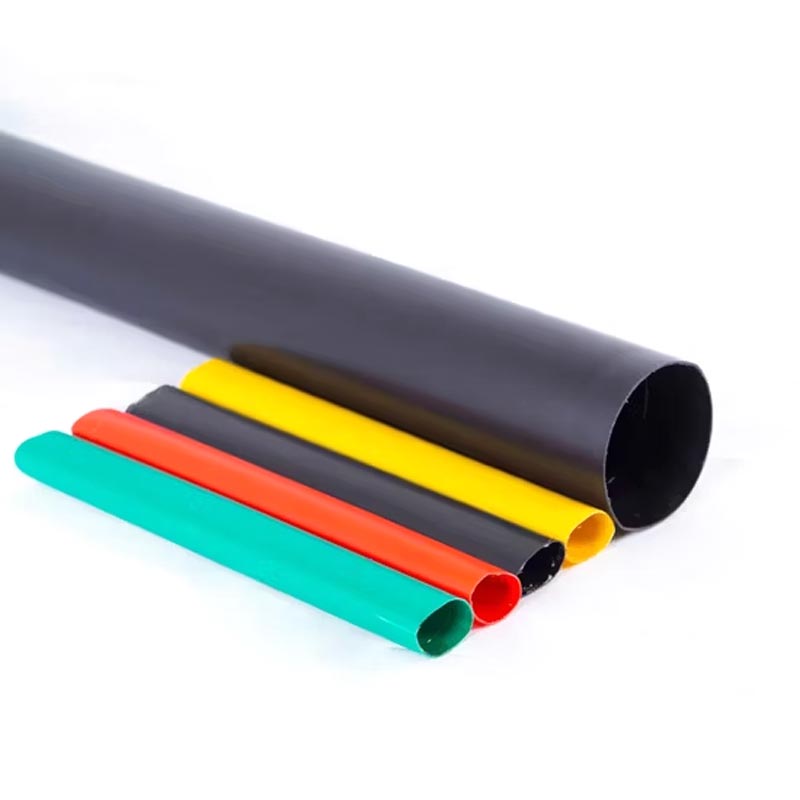

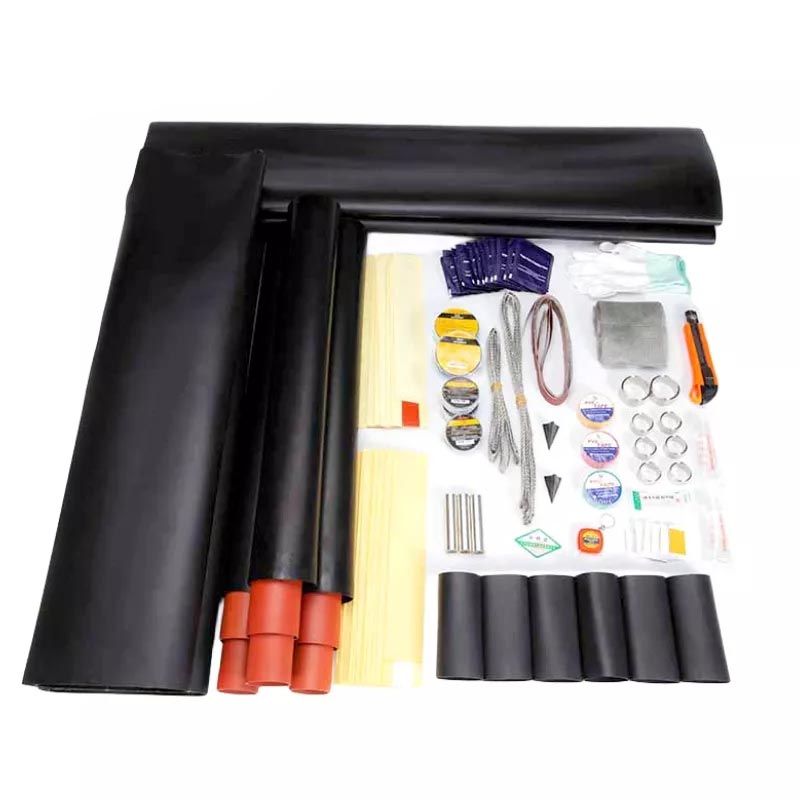

Isıyla Daralan Kablo Bağlantı Kiti
Çin'deki tedarikçiniz olarak Taili'yi seçin ve kabloların elektriksel performansını, mekanik mukavemetini ve suya ve neme dayanıklılık performansını eski haline getirmek için ısıyla büzüşen malzemeler kullanan kalıcı bir bağlantı cihazı olan Isıyla Daralan Kablo Bağlantı Kitimizi edinin. Esas olarak iki kablo bölümünü güvenli ve güvenilir bir şekilde birbirine bağlamak için kullanılır.
Heat Shrink Cable Joint Kit is one of Taili factory's high quality products. You can contact us and send your customized requirements, and enjoy our technical support services.
· Excellent sealing performance: The pre-applied hot melt adhesive can effectively prevent moisture and humidity from penetrating, suitable for harsh environments such as damp and directly buried conditions.
· Reliable electrical insulation: It provides insulation strength equivalent to or even higher than that of the original cable.
· Good mechanical protection: After shrinking, it forms a tough shell that can withstand certain mechanical impacts and wear.
· Strong adaptability: A set of pipe materials can usually adapt to different outer diameters of cables within a certain range, with good versatility.
· Installation is relatively simple: Although it requires a heat source, the installation process is easier to master than that of cold shrink joint , and the skill requirements are slightly lower.
· High cost-effectiveness: Compared to other types of joint, the material cost of heat shrink joint is usually lower.
Product application
It is precisely because of these characteristics of the heat shrink joint that it is widely used in:
· Connection of power cables at voltage levels ranging from 1kV to 35kV.
· Underground direct-buried cable lines.
· In cable tunnels and cable trenches.
· Power distribution systems within industrial and mining enterprises, as well as buildings.
· In situations where cable branching is required.
Product selection
1kV 4-core/5-core heat shrink joint kit
| Model | Cable cross section(mm²) | |
| 4-core | 5-core | |
| 4.0# | 5.0# | 10-16 |
| 4.1# | 5.1# | 25-50 |
| 4.2# | 5.2# | 70-120 |
| 4.3# | 5.3# | 150-240 |
| 4.4# | 5.4# | 300 |
11kV 1-core/3-core heat shrink joint kit
| Model | Cable cross section(mm²) | |
| 1-core | 3-core | |
| 1.1# | 3.1# | 25-50 |
| 1.2# | 3.2# | 70-120 |
| 1.3# | 3.3# | 150-240 |
| 1.4# | 3.4# | 300-400 |
24kV 1-core/3-core heat shrink joint kit
| Model | Cable cross section(mm²) | |
| 1-core | 3-core | |
| 1.1# | 3.1# | 25-50 |
| 1.2# | 3.2# | 70-120 |
| 1.3# | 3.3# | 150-240 |
| 1.4# | 3.4# | 300-400 |
36kV 1-core/3-core heat shrink joint kit
| Model | Cable cross section(mm²) | |
| 1-core | 3-core | |
| 1.1# | 3.1# | 50-95 |
| 1.2# | 3.2# | 120-185 |
| 1.3# | 3.3# | 240-400 |
